● Features

Heating method: direct or indirect heating

Control mode: intermittent or continuous

Power range: 10-1000kW

Hot air temperature: 200/450℃

Flame shape: straight flame (long flame H/short flame R), flat flame K

Suitable for natural gas, liquefied gas, city gas, and coke oven gas

Usage: paired with burner bricks

Flame outlet speed: low, medium, high

Installation method: side wall or furnace top

Burner structure: modular design for easy replacement of accessories

Ensures complete combustion with low pollutant emissions

Works with burner bricks for ignition and flame monitoring

●Application

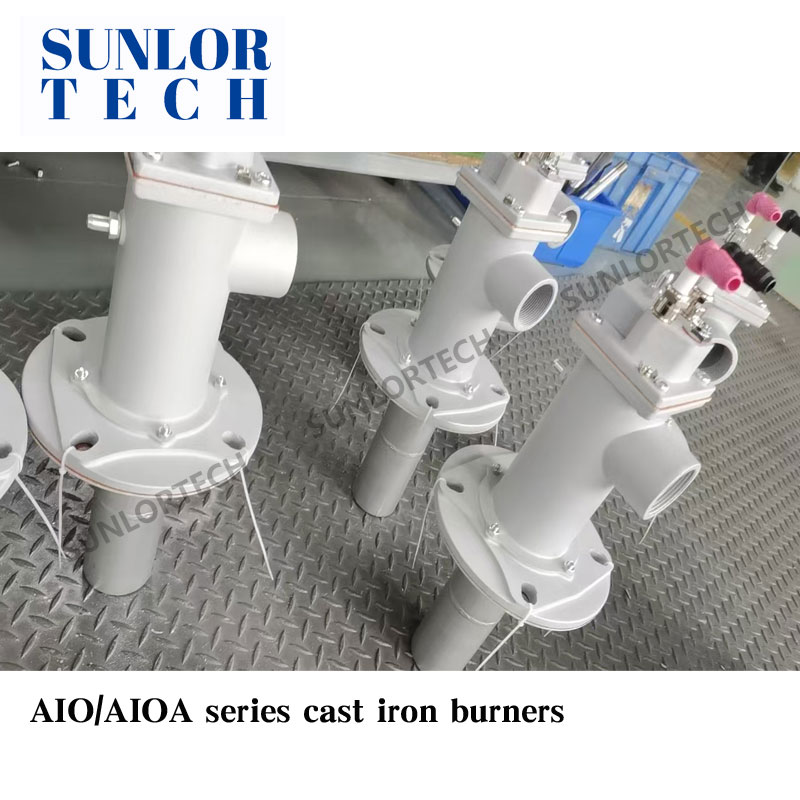

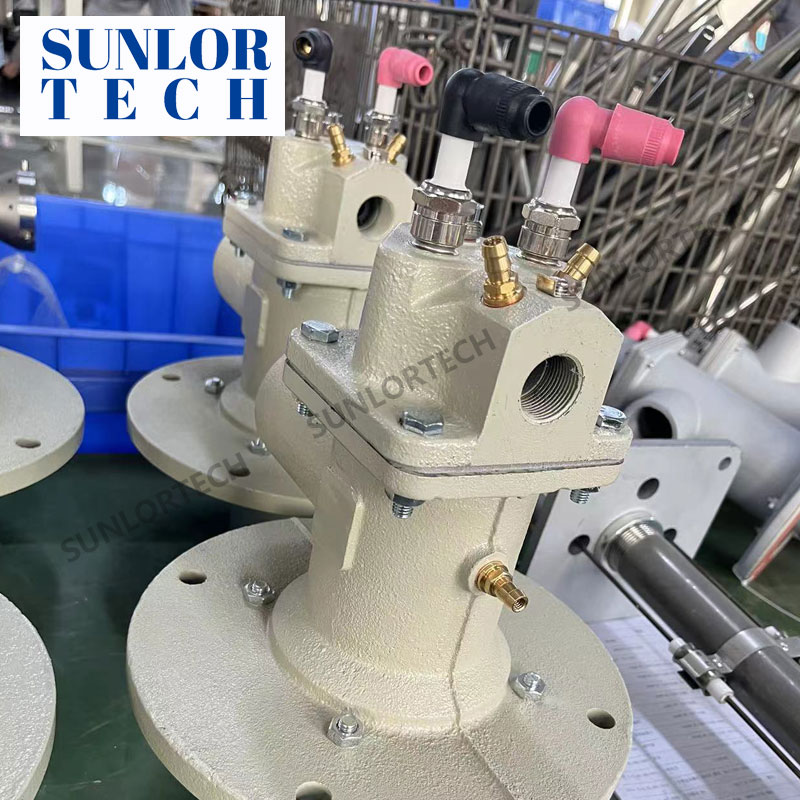

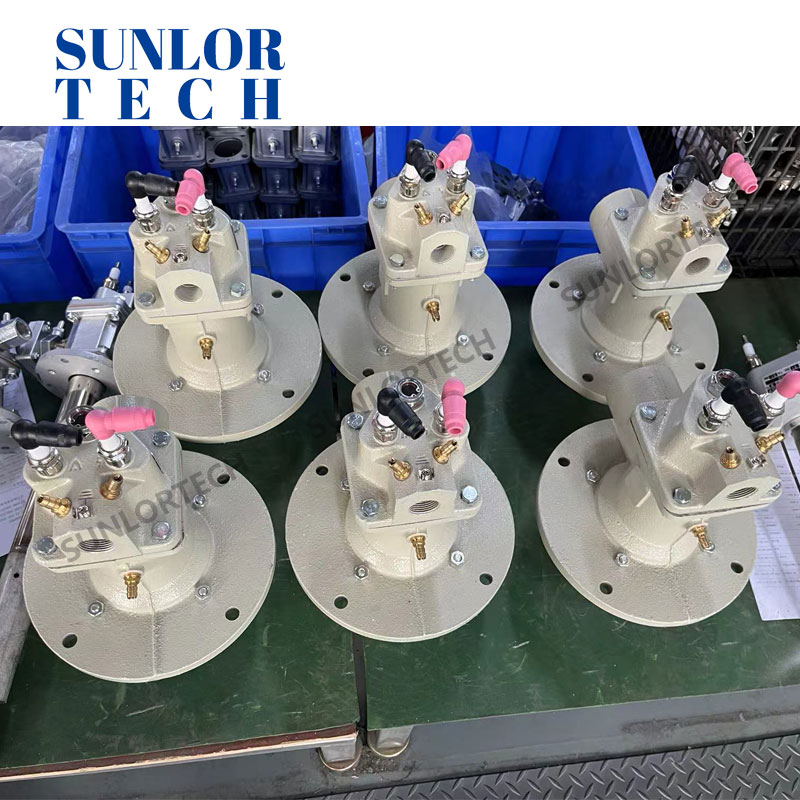

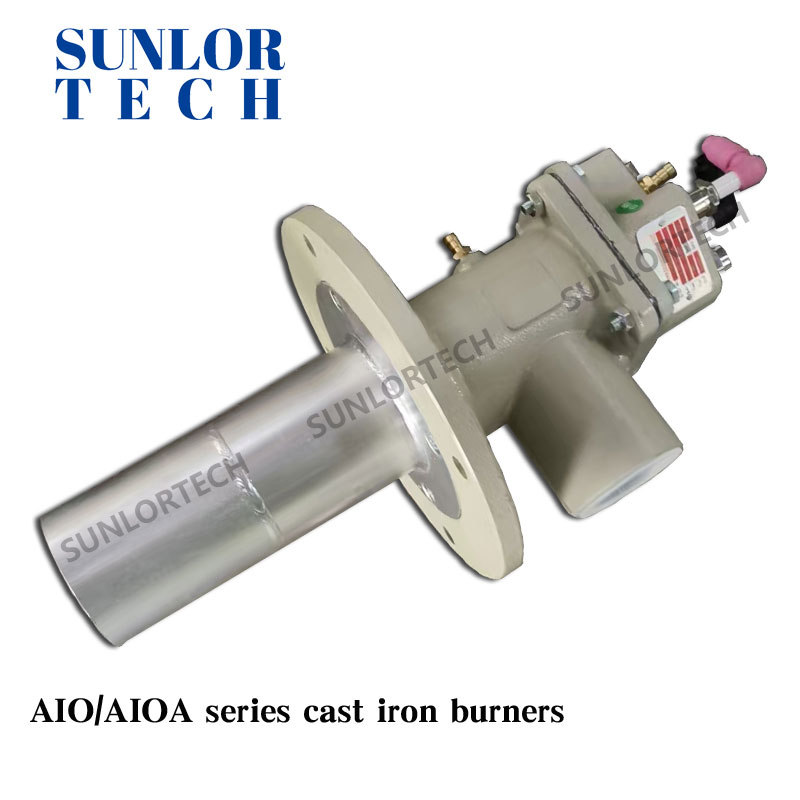

The AIO series burner, paired with burner bricks, is suitable for a variety of industrial furnaces and gas heating systems (up to 1600℃). It is ideal for the steel industry, precious metals, non-ferrous metals, and light alloy industries, as well as the glass, refractory materials, ceramics, and enamel industries. It is also suitable for ore and rock drying industries, plastic, fiber materials, and papermaking industries, as well as drying equipment and hot blast stoves. The burner can be ignited using ignition electrodes, and flame detection can be performed using ion electrodes or UV ultraviolet light. When the furnace temperature is below 750℃, it is recommended to install a flame detection system.
