Flame Switch Controller the flame status of burner nozzle controller AFW15-T flame detector

Condition: New
Warranty: 3 months, 1 year
Applicable Industries: Building Material Shops, Energy & Mining
Weight (KG): 1
Showroom Location: India
Video outgoing-inspection: Not Available
Machinery Test Report: Not Available
Place of Origin: Guangdong, China
Brand Name: Sunlor Tech astechnic
Type: Gas Burner
Product name: flame detector
Application: combustion system
Package: plywood case
Shipping term: exw, cif or fob
Material: electronic component
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy now

Description

Condition: New

Warranty: 3 months, 1 year

Applicable Industries: Building Material Shops, Energy & Mining

Weight (KG): 1

Showroom Location: India

Video outgoing-inspection: Not Available

Machinery Test Report: Not Available

Place of Origin: Guangdong, China

Brand Name: Sunlor Tech astechnic

Type: Gas Burner

Product name: flame detector

Application: combustion system

Package: plywood case

Shipping term: exw, cif or fob

Material: electronic component

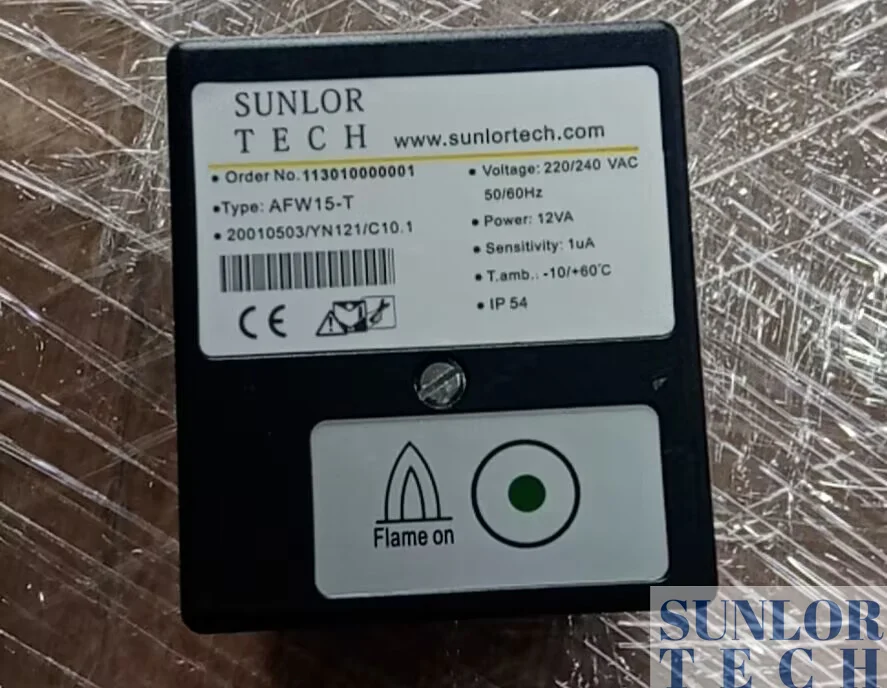

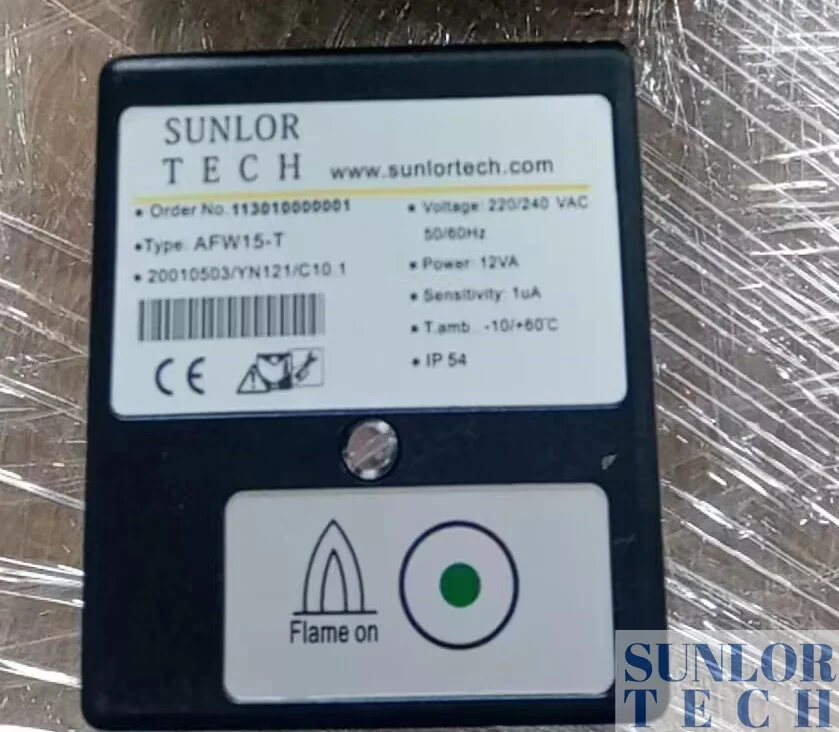

AFW15-T flame detector

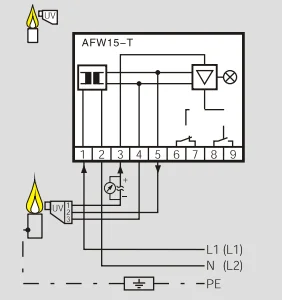

AFW15-T is a kind of detector to monitor the flame status of burner nozzle and send switching value signal to external.The display of the flame status can be realized by opening or closing of a relay.

The flame is monitored by ionizing rod or AVS1, AVSB probes. Working pressure of the flame signal amplifier inside the two groups of passive switches (one is normally closed and one is normally open): 220V/110V; Capacitance of oplional conlactor: 2A; Power: 12VA: lonization current of flame: >1 μ A; Ambient temperature: -20 ℃-—+60 ℃: High-strength heat-proof plastic shell: There are control circuil board, flame signal amplifier and green indicator lamp (A) inside the plug-type upper cover; There are connection terminals in the base and the earth wire and the null line terminal biocks are pre-connected; 5 wire holes can be connected to PG9(B) cable.
