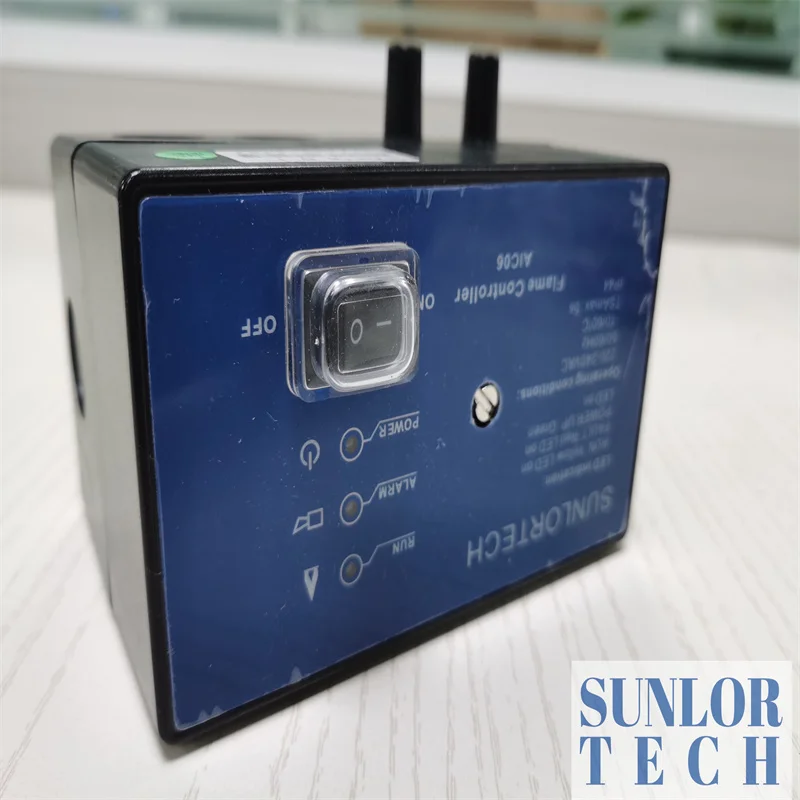

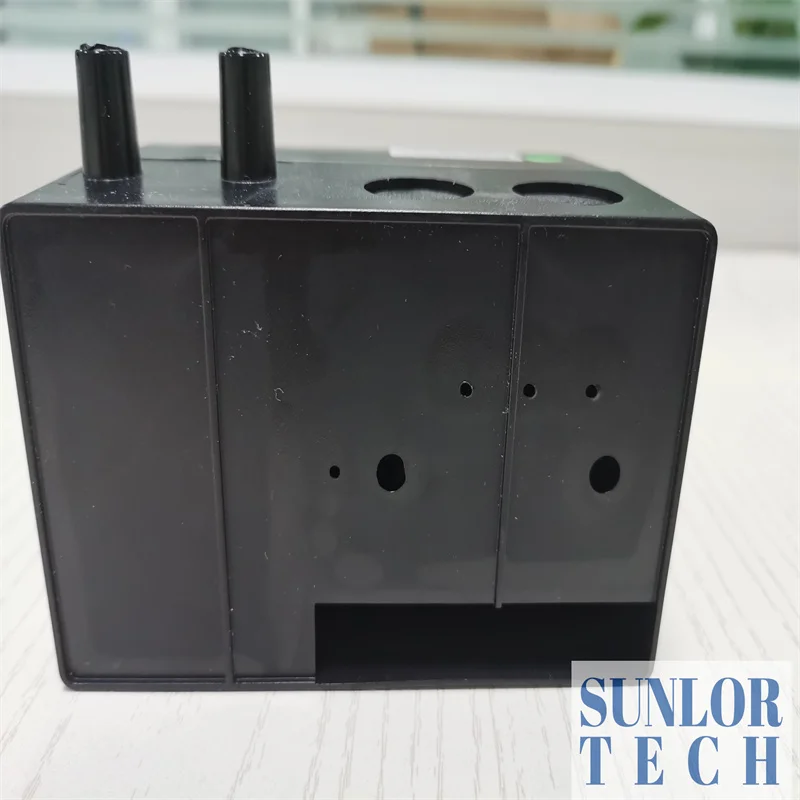

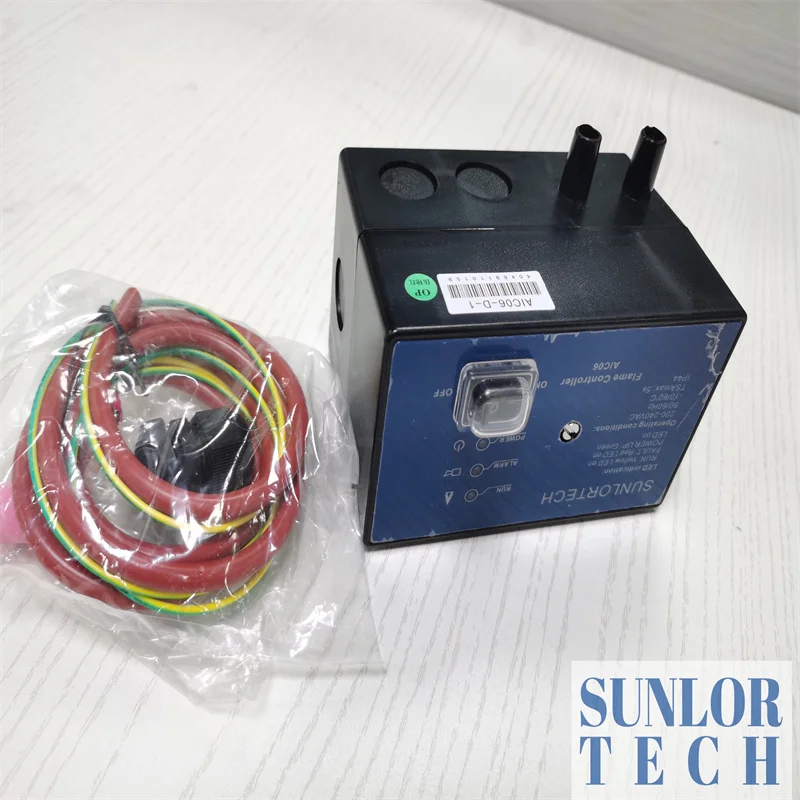

• Flame controller for gas combustion system fire ignition furance boiler , kiln combustion system automatic ignition
    ❤ Add to collection

  • Flame controller for gas combustion system fire ignition furance boiler , kiln combustion system automatic ignition

    Condition: New

    Warranty: 1.5 years, 1 year

    Applicable Industries: Manufacturing Plant, Construction works , Energy & Mining, Other

    Weight (KG): 0.35

    Showroom Location: India

    Video outgoing-inspection: Not Available

    Machinery Test Report: Provided

    Place of Origin: Guangdong, China

    Type: Heating Elements

    Product name: ignition controller

    Application: combustion system

    Package: plywood case

    Shipping term: exw, cif or fob

    Material: electronic component

    power supply: AC+-10%,5060HZ

    enviromental temperature: -10°C+60°C,without damp environment

    Flame Detection Current: adjust between 2-20uA

    ignition time: Ignition time can be set. Please specify when ordering.

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Condition: New

Warranty: 1.5 years, 1 year

Applicable Industries: Manufacturing Plant, Construction works , Energy & Mining, Other

Weight (KG): 0.35

Showroom Location: India

Video outgoing-inspection: Not Available

Machinery Test Report: Provided

Place of Origin: Guangdong, China

Type: Heating Elements

Product name: ignition controller

Application: combustion system

Package: plywood case

Shipping term: exw, cif or fob

Material: electronic component

power supply: AC+-10%,50\60HZ

enviromental temperature: -10°C+60°C,without damp environment

Flame Detection Current: adjust between 2-20uA

ignition time: Ignition time can be set. Please specify when ordering.

Technical Sheet
Power supplyAC220V±60°C
Temperature-10°C+60°C,without damp environment
Flame Detection Currentadjust between 2-20uA
ignition timeIgnition time can be set. Please specify when ordering.
defaultIf no specify clearly, the igntion time is 5S. The igntion time could be adjust
 Ignition transformer output 8KW

Notification

The shape size of AFS244 igniter is the same as that of AFS258 igniter. Ionization and UV detection can also be used. The difference is that AFS244 itself has its own ignition transformer, which is suitable for day burners whose ignition power requirement is not higher than 320KW.
Ignition cable: AFS 244.I: Better less than 0.7m, the maximum 1M, the longer the cable, the greater the power consumption during ignition. Do not wear in metal pipe. Keep away from flame detection cable and use anti-interference electrode cap. Flame detection and ignition cables using unshielded high voltage cables
